AD5933It is a high-precision impedance converter system solution with on-chip integrated frequency generator and 12-bit, 1 MSPS analog-to-digital conversion (ADC). The signal generated by the frequency generator is used to stimulate the external complex impedance. The response signal of the external impedance is sampled by the on-chip ADC, and then the on-chip DSP is processed by discrete Fourier transform (DFT). The DFT algorithm returns a real (R) data word and an imaginary (I) data word at each frequency.After calibration, it is easy to calculate the impedance amplitude and relative phase of each scanning frequency point. The calculation is completed off-chip by using the register contents of the real and imaginary parts, and the register contents can be obtained from serial I₂C interface read.

Application Electrochemical analysis-Bioelectrical impedance analysis-Impedance spectrum analysis-Complex impedance measurement-Corrosion monitoring and protection equipment-Biomedical and automotive sensors

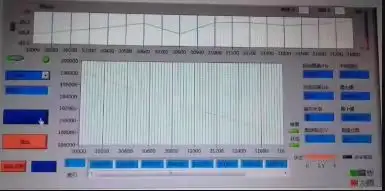

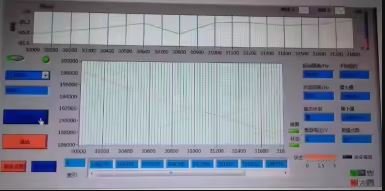

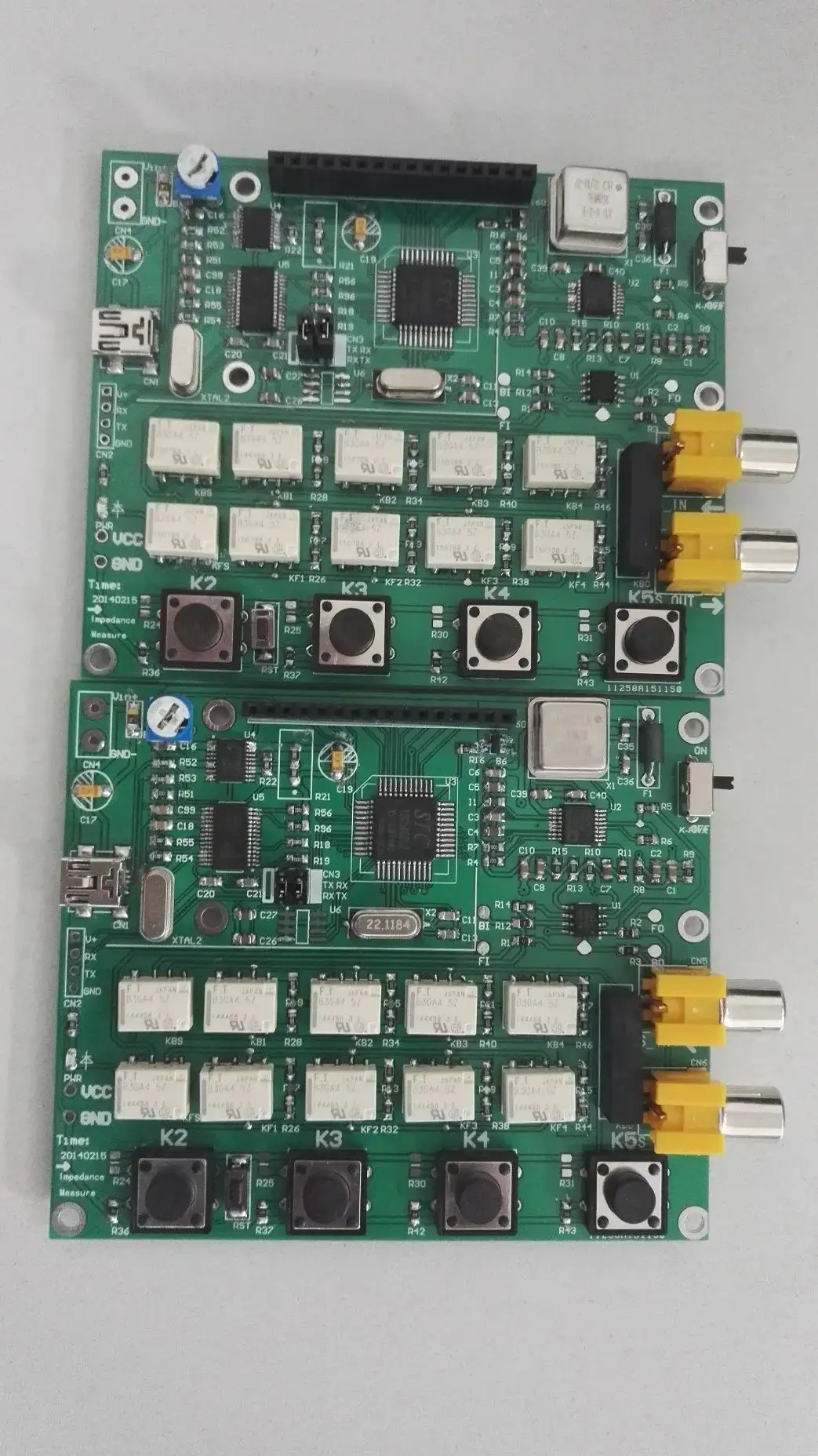

This product is based on AD5933 as the measurement core and STC12 Series 51 single chip microcomputer as the control core. Writing Labview upper computer software can not only realize separate measurement of lower computer, but also realize interaction between upper computer and lower computer, labview software can be used to operate the instrument for frequency sweeping, measurement and display.

The main features are as follows:

• Supports automatic range measurement and automatic switching by relay
• 51 monolithic development code structure easy to read and understand easy to carry out secondary development and chip evaluation
• Buy this product with MCU code and Labview code

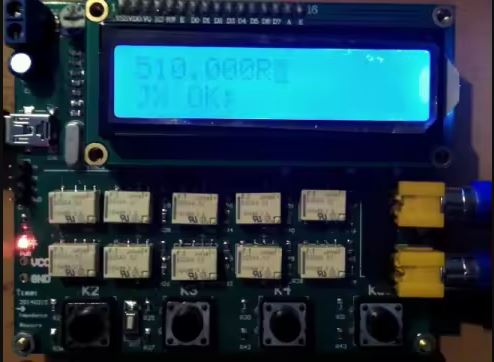

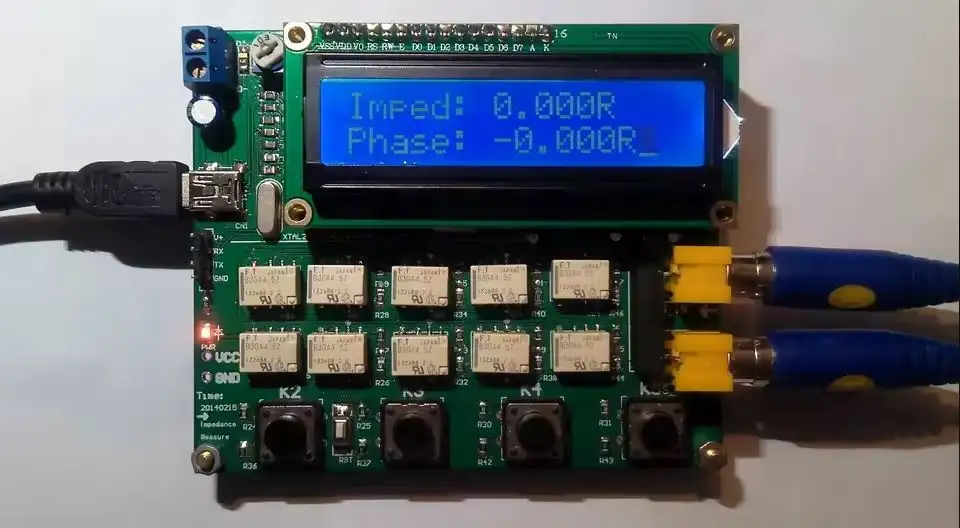

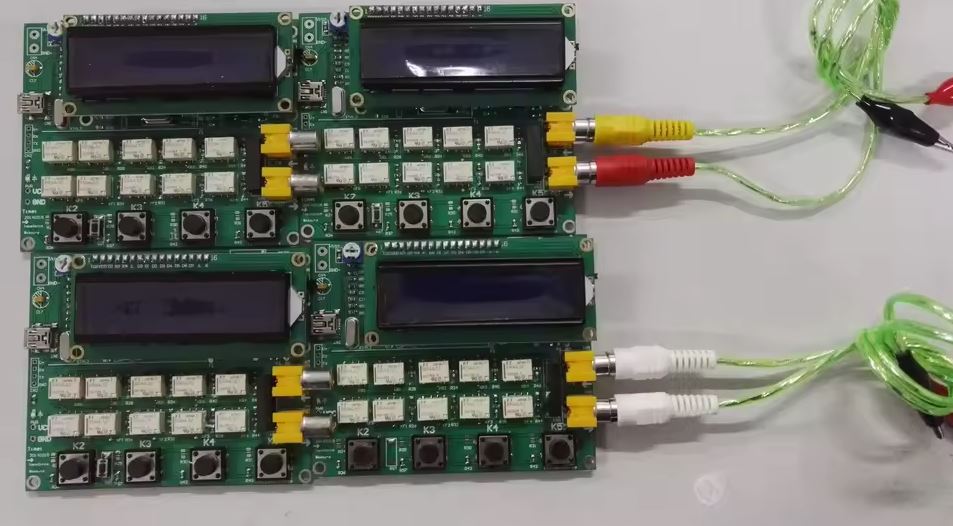

• Support offline lower computer 1602 LCD display can also be measured by virtual instrument
• High-performance LDOs and operation and release are adopted to ensure signal quality and measurement accuracy.
• Technical support services are in place



  Specifications:
  Material: High-quality PCB with integrated AD5933 sensor module
  Design and Style: Compact and portable development board with BNC interface
  Usage and Purpose: Impedance measurement and analysis for various applications
  Performance and Property: 12-bit, 1 MSPS ADC and on-chip DSP for precise impedance calculations

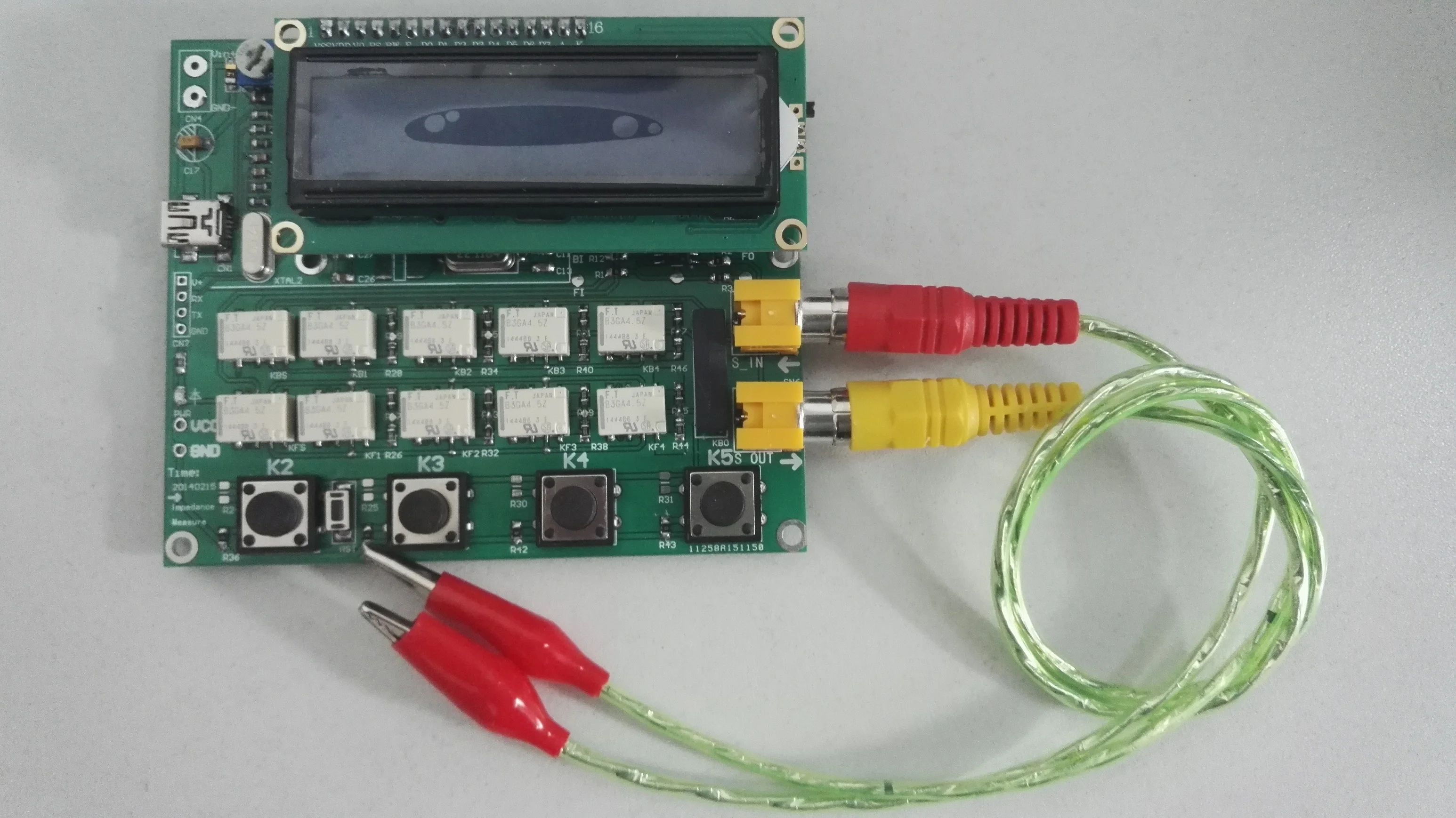

  Parts and Accessories: Includes AD5933 impedance measurement board, BNC interface measurement line, MCU code, and Labview code
  Applicable People: Engineers, researchers, and students involved in electrochemical analysis, bioelectrical impedance analysis, and impedance spectrum analysis

  Features:
  **Advanced Impedance Measurement Capabilities**
  The AD5933 Impedance Measurement Development Board is a state-of-the-art solution for precise impedance analysis. With its on-chip integrated frequency generator and 12-bit, 1 MSPS analog-to-digital conversion (ADC), this board delivers exceptional accuracy in impedance measurements. The signal generated by the frequency generator is used to stimulate the external complex impedance, and the response signal is sampled by the on-chip ADC. The on-chip DSP then processes the signal using discrete Fourier transform (DFT), returning real (R) and imaginary (I) data words for each frequency point.

  **Versatile Application Scenarios**
  This development board is ideal for a wide range of applications, including electrochemical analysis, bioelectrical impedance analysis, impedance spectrum analysis, and corrosion monitoring and protection equipment. Its compact design and portability make it a valuable tool for biomedical and automotive sensors, ensuring reliable and accurate measurements in diverse environments. The board's versatility extends to the inclusion of support for offline lower computer operation, as well as the capability to display measurements via a 1602 LCD.
