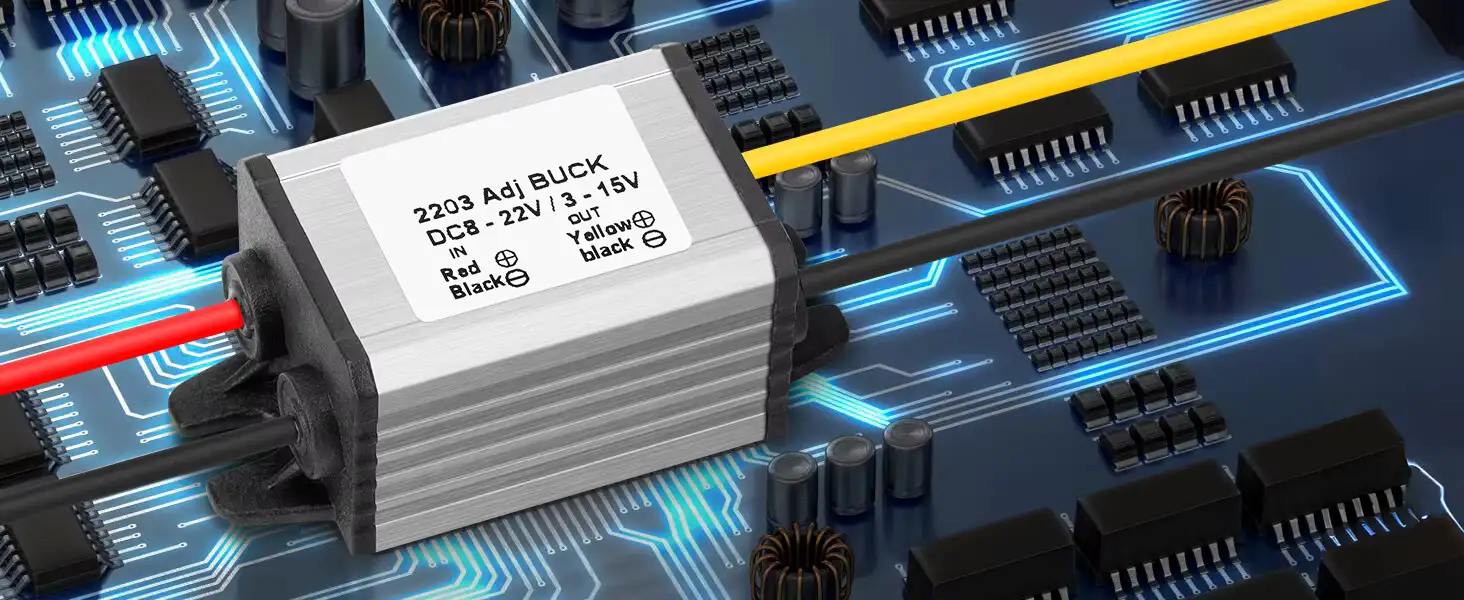

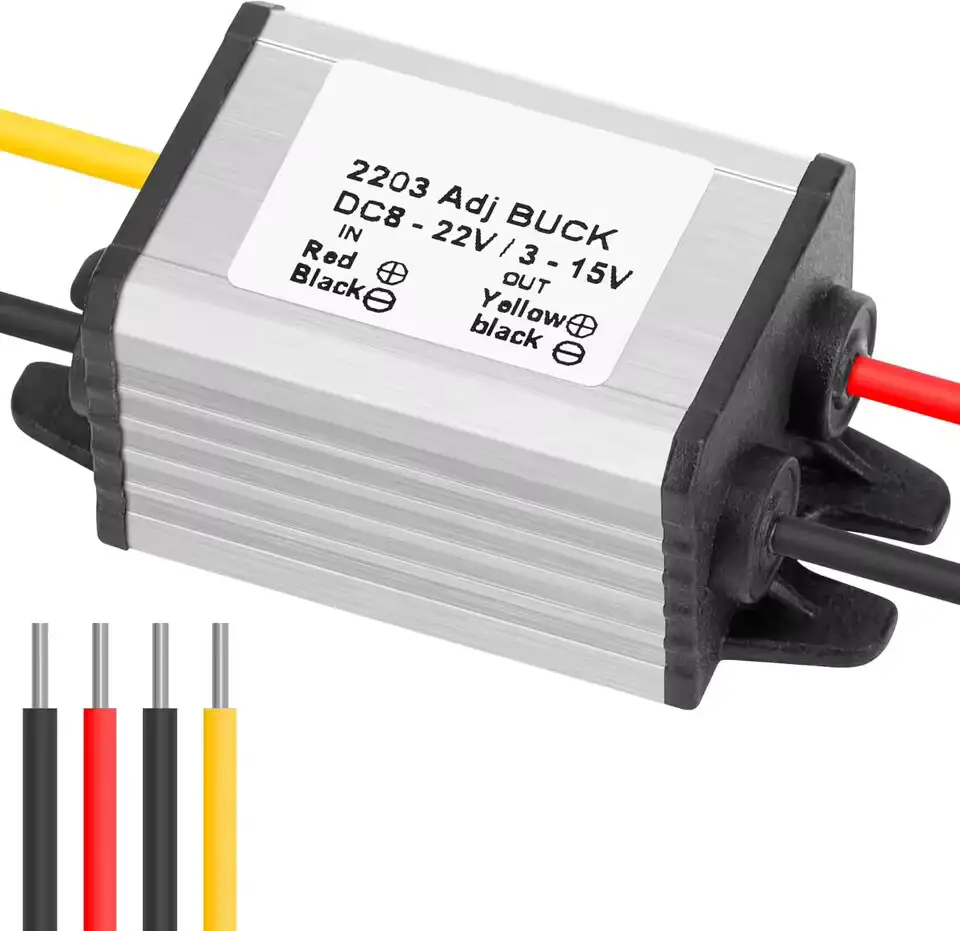

Állítható vízálló fémházas DC-DC konverter.
A kimenet fokozatmentesen állítható 3-15V között, maximum 3A terhelhetőséggel.
A helikális potméterrel óramutató járásával ellentétes (CCW) nő a kimeneti feszültség, megegyező irányban tekerve (CW) csökken a kimenet.
Bemenet: DC 8-32V (abs max 35V)
Kimenet: DC 3-15V (abs max 24V)
Parameter:
input voltage DC 8V-32V
output voltage DC 3-15V
output current 3A
conversion efficiency up to 96%
operating temperature is -25℃~80℃
Protection Function:
The DC-DC converter has over-heating protection, short circuit protection, overload protection, over current protection, over-voltage protection and reversed-connection protection

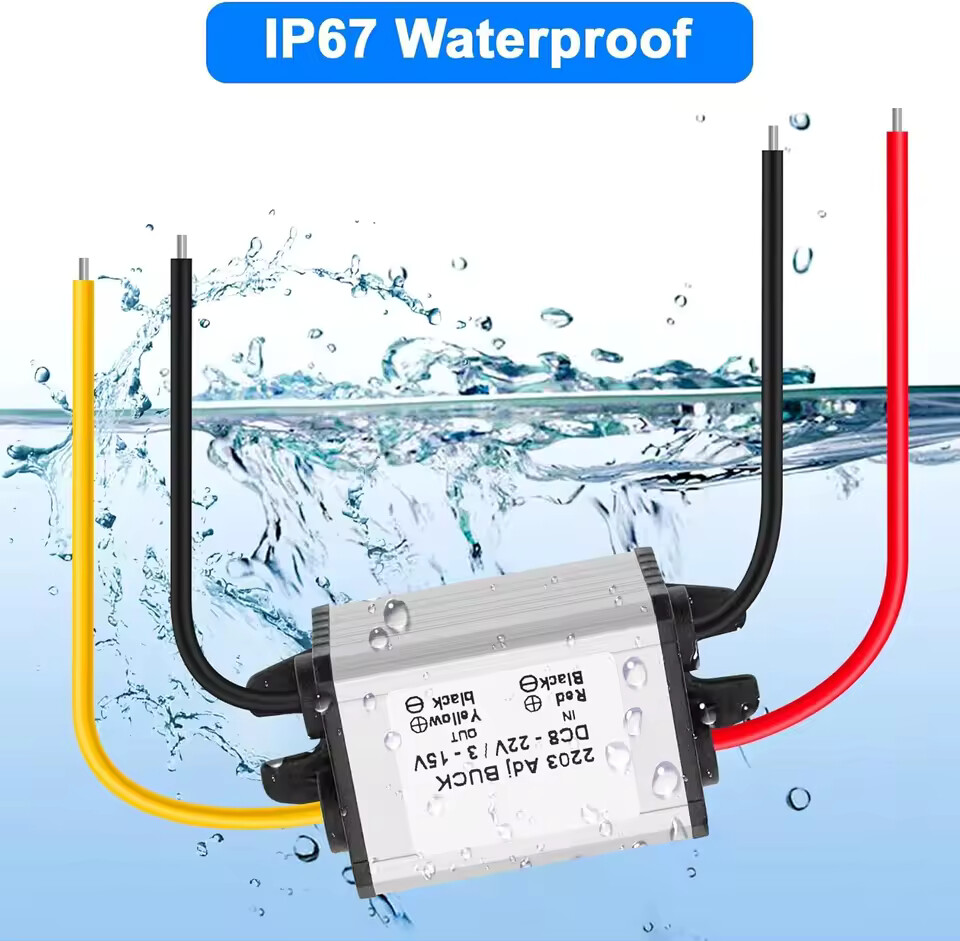

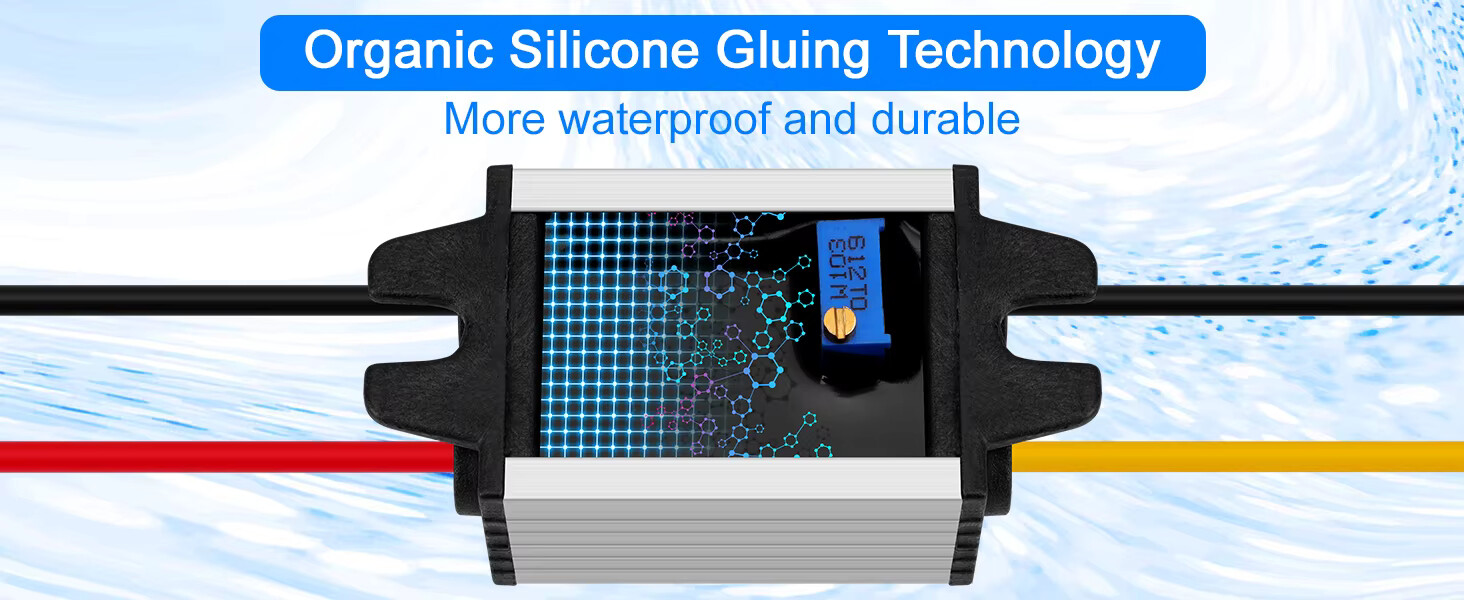

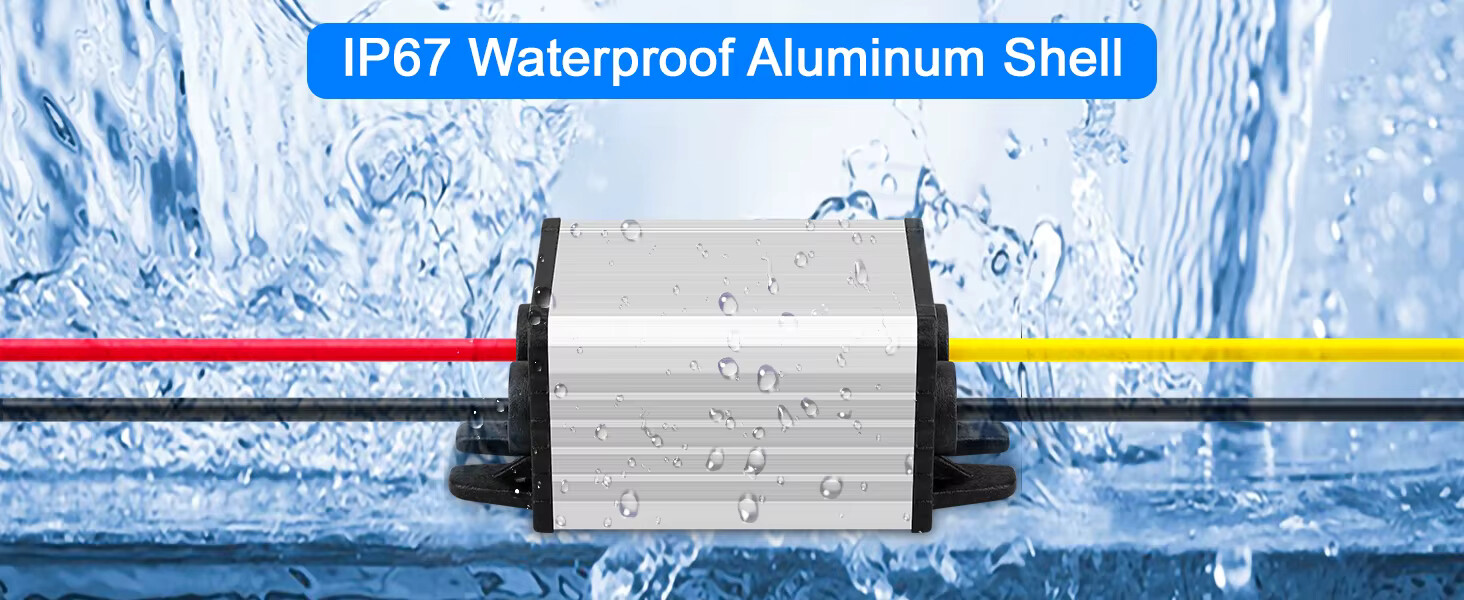

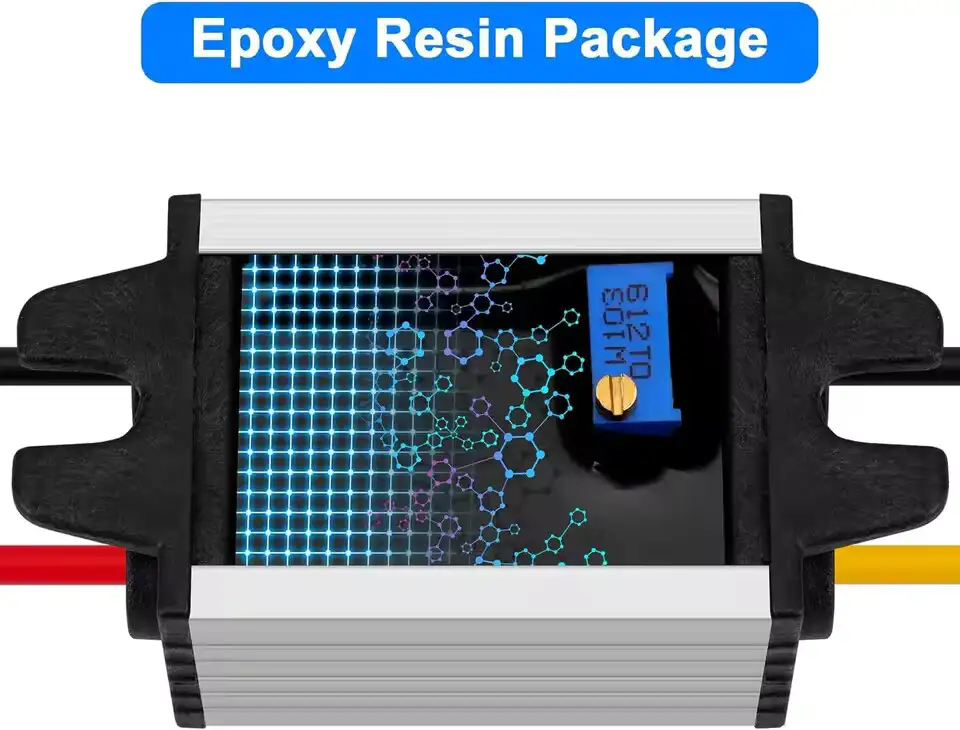

Aluminum Case & Silicone Sealed Design: The exterior of the voltage converter has an aluminum case as a heat sink and is especially waterproof, shock-proof, moisture-proof and dust-proof. The unit is internally sealed inside melted plastic and filled with potting compound
Widely Application: The dc voltage regulator compatible with GPS navigator, MP3, MP4, dashcam, solar panel, LED display, camera, automotive system etc
High Conversion Efficiency: Synchronous rectification technology - multiple intelligent protection functions, high conversion efficiency and good stability. Conversion efficiency up to 96%
