350 L/H folyadékmennyiséggel.
Opcionálisan 12V-os és 24V-os változat rendelhető!

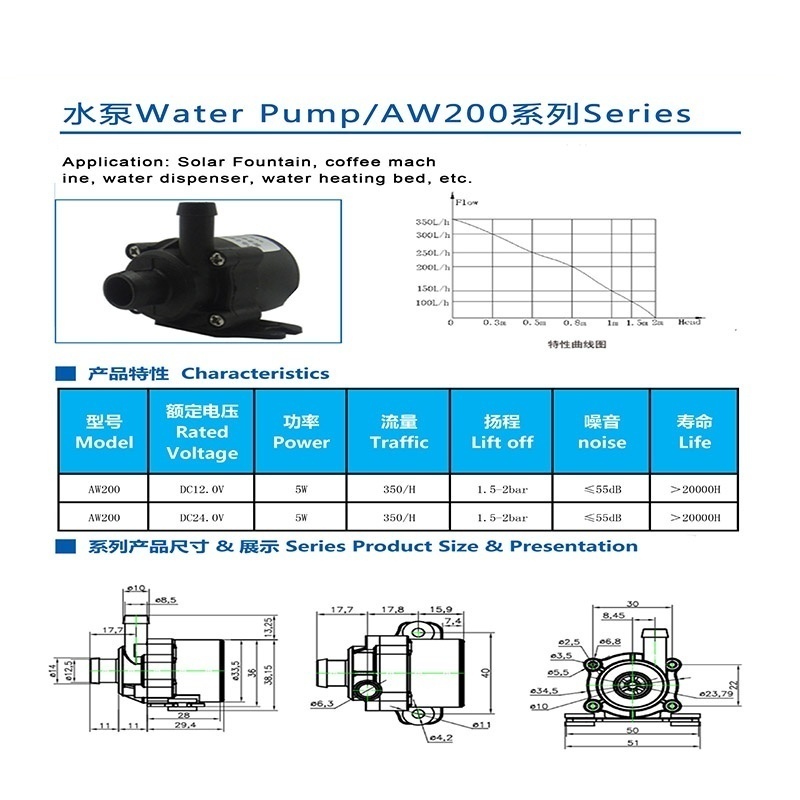

Opcionálisan a kimenő csatlakozó 12mm-es önzáró, főleg csak merülő módban szokás alkalmazni 16mm-es bemenő csővel (méretrajz a képeken)

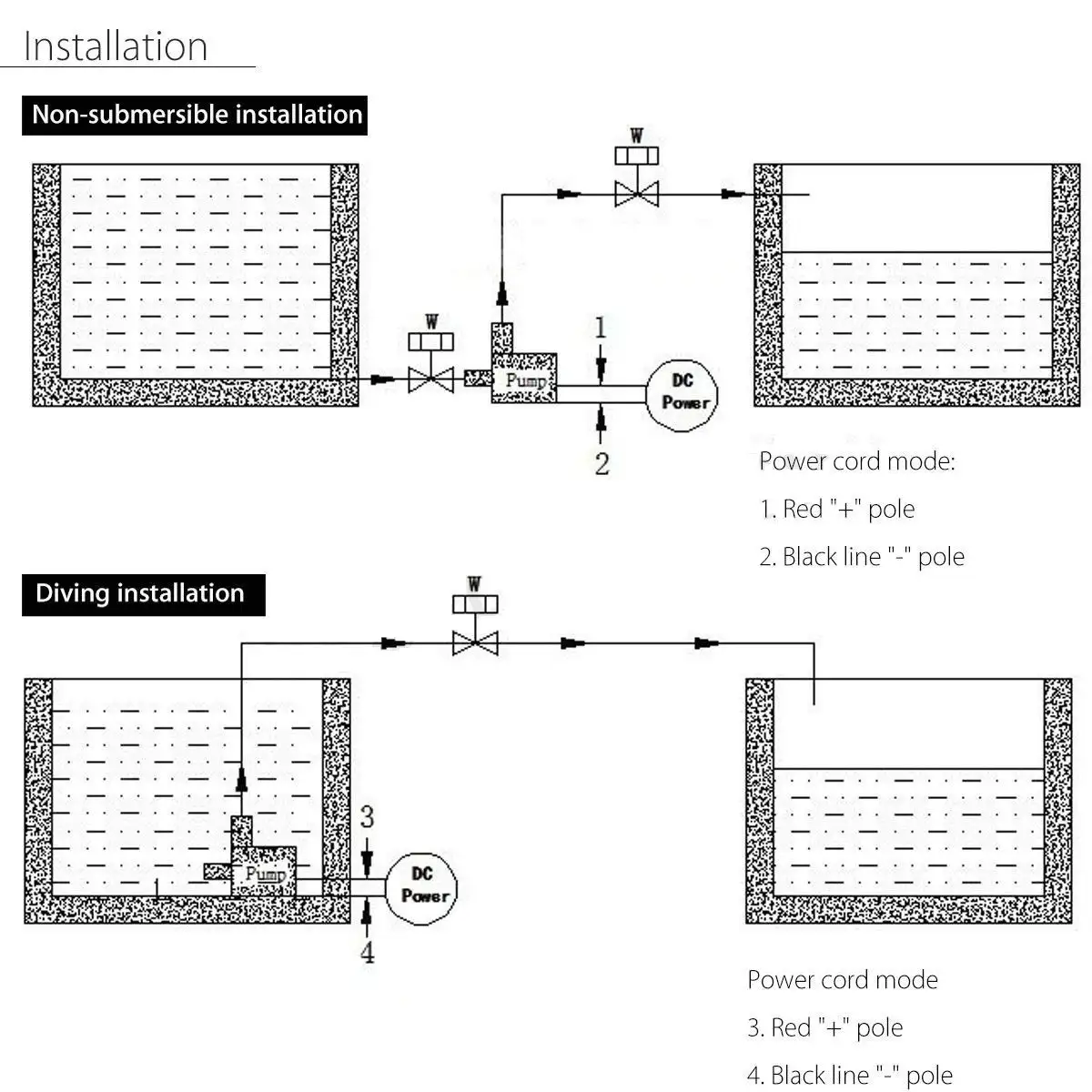

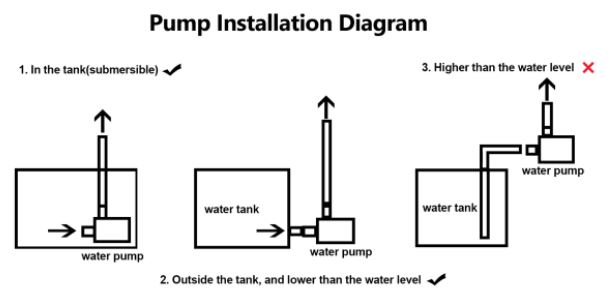

Merülő típusú szivattyú, ezért alkalmazása merülő elhelyezéssel, vagy külső elhelyezéssel, ahol bemeneti víznyomás van tehát a víz szintje alatt szükséges (installáció a képeken)
max 5W-os teljesítménnyel, a 12V-os változat maximum áramfelvétel 0.5A, a 24V-os változat maximum 0.25A-t vesz fel.
Specification:

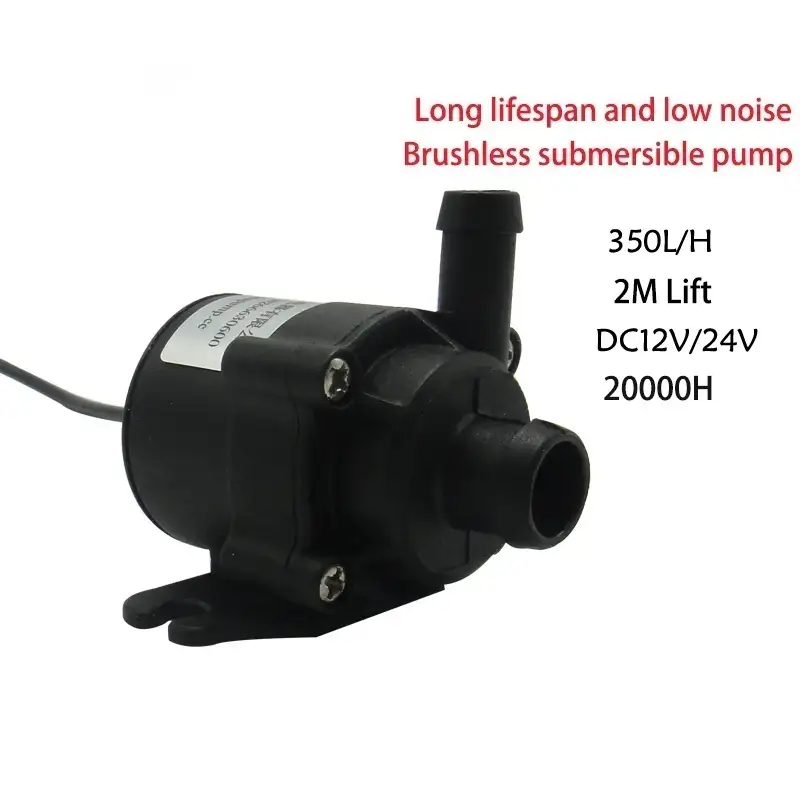

Type: Solar Water pump
Material: Plastic
Color: Black
Power: 5W
Sizes: About 3.5cm(D) x 5cm(H)
Voltage: 12V - 24V DC (24V is abs. max value, not reated, so please check the power supply you use)
Maximum Rated Current: 500mA @12V, 250mA @24V
Max Flow Rate: 350 L/H
Max Water Head: 2 meter
Max circulating water temperature: 100°C
Note:
1.Do not take the wrong pump positive and negative.
2.Prohibit not through the power converter will be connected directly to the 220V power supply pump.
3.Is strictly prohibited for strong acidity, alkali and other damage to the pump medium.
4.The pump is suitable for medium temperature 1 ℃ - 60 ℃.
