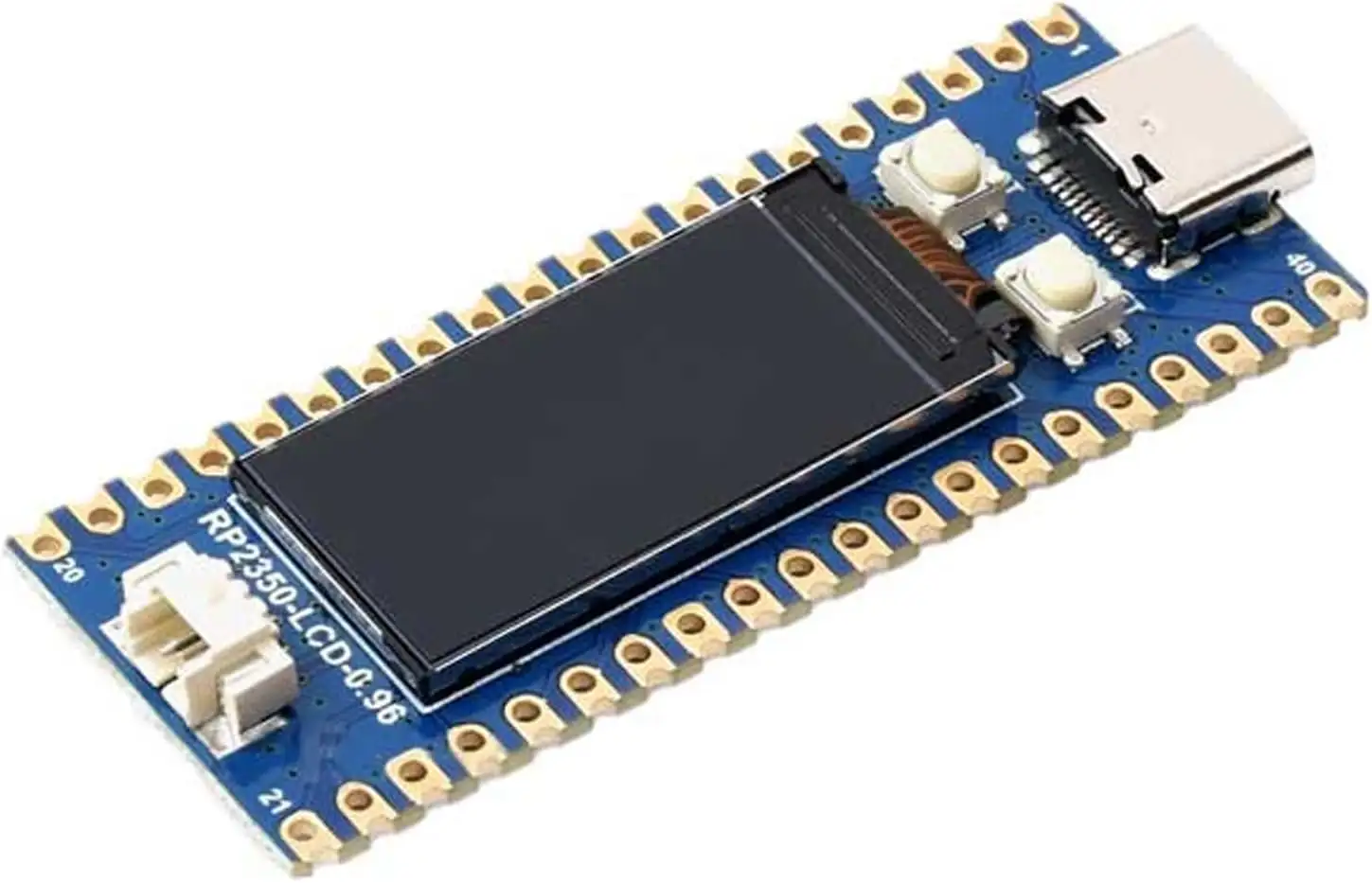

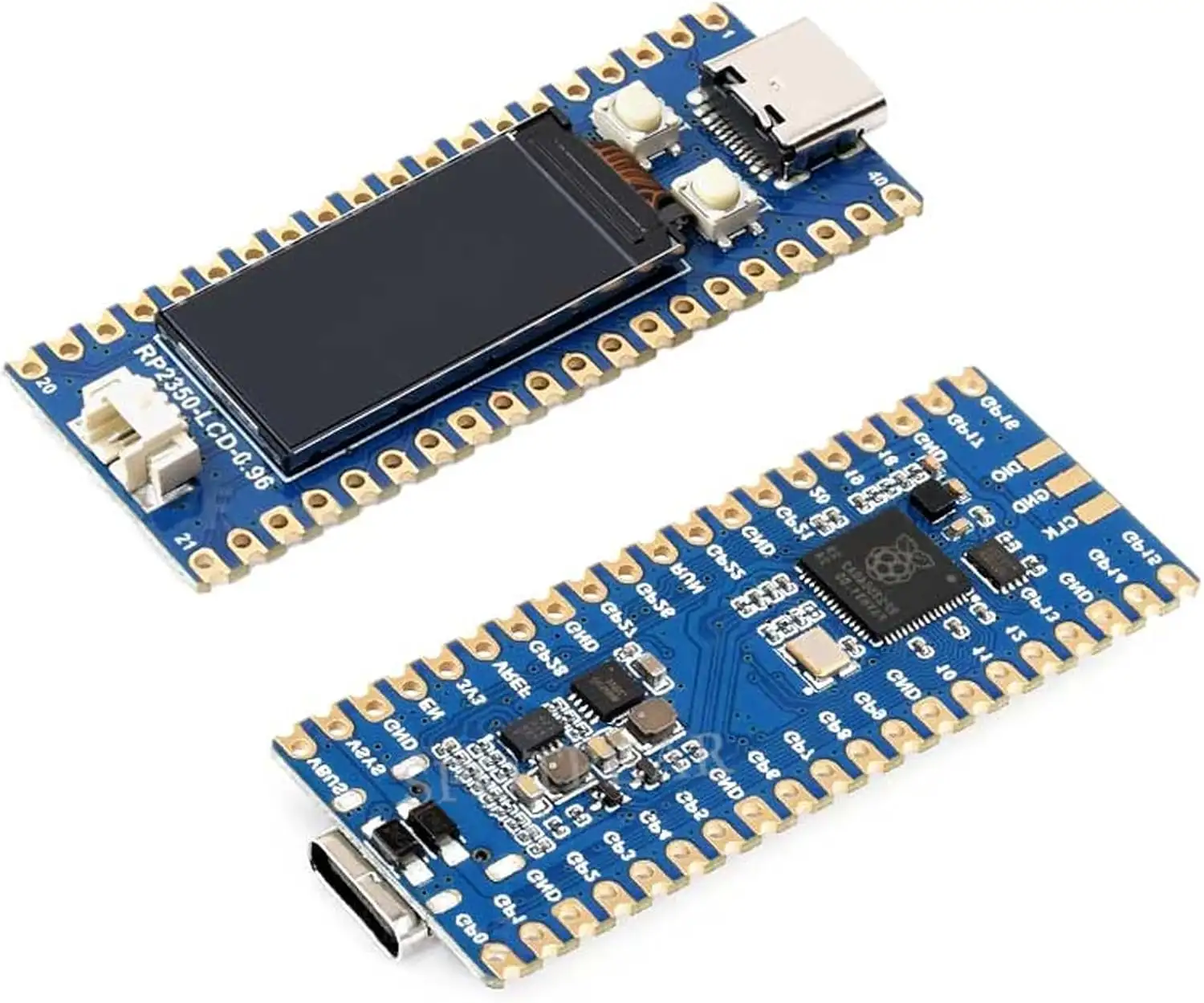

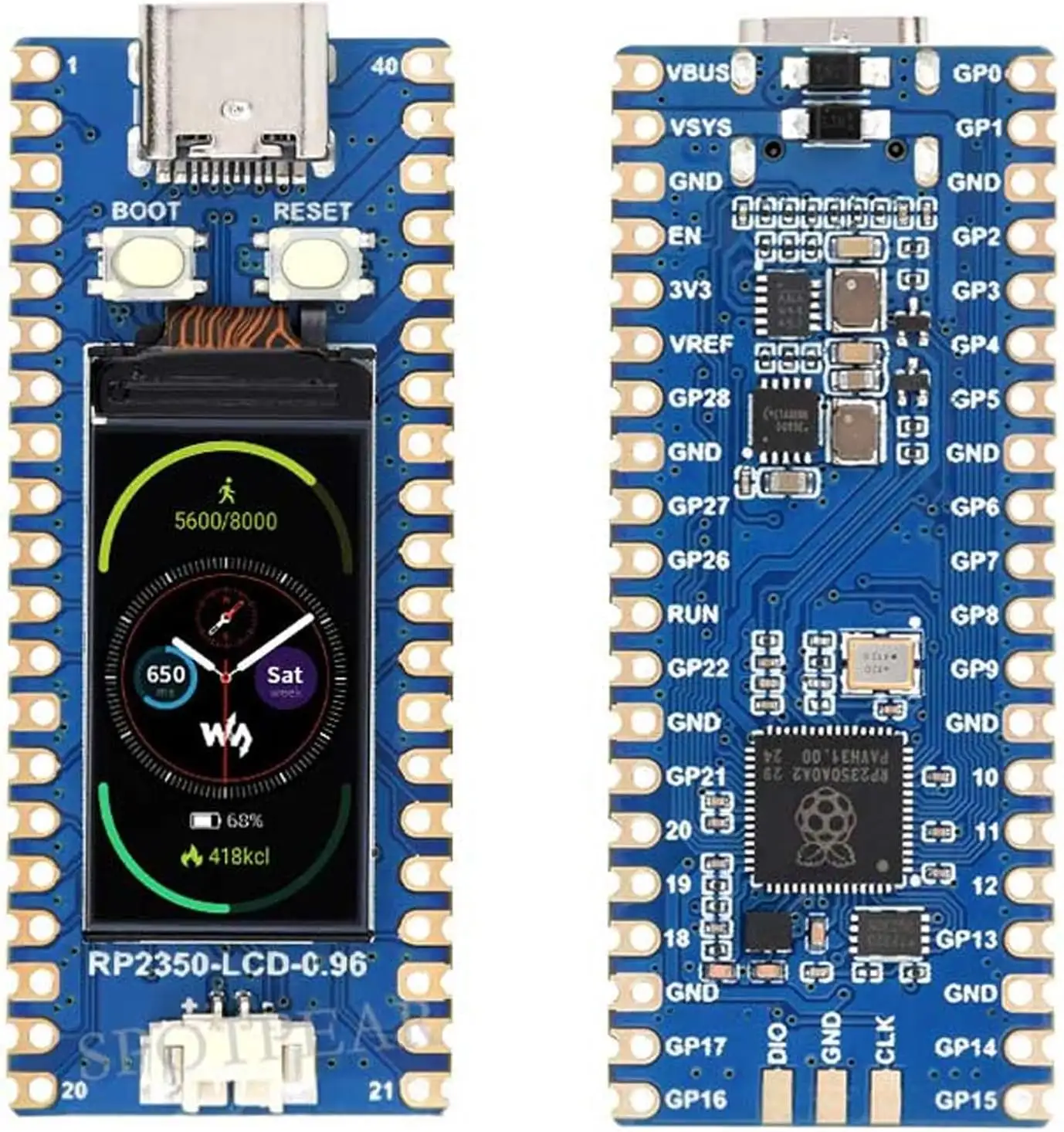

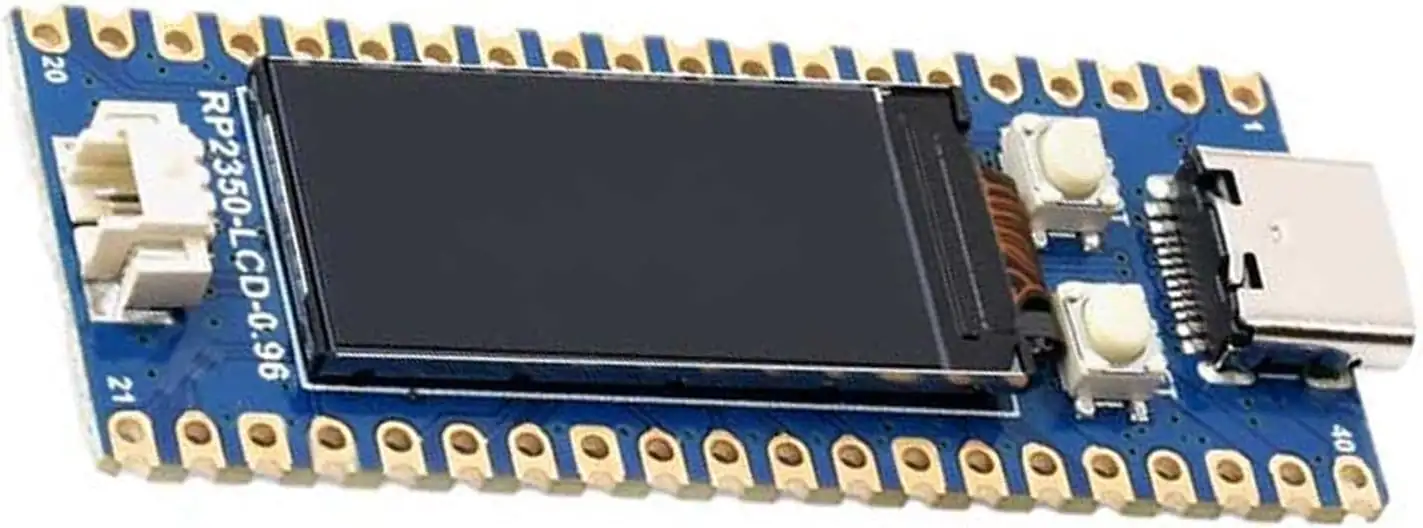

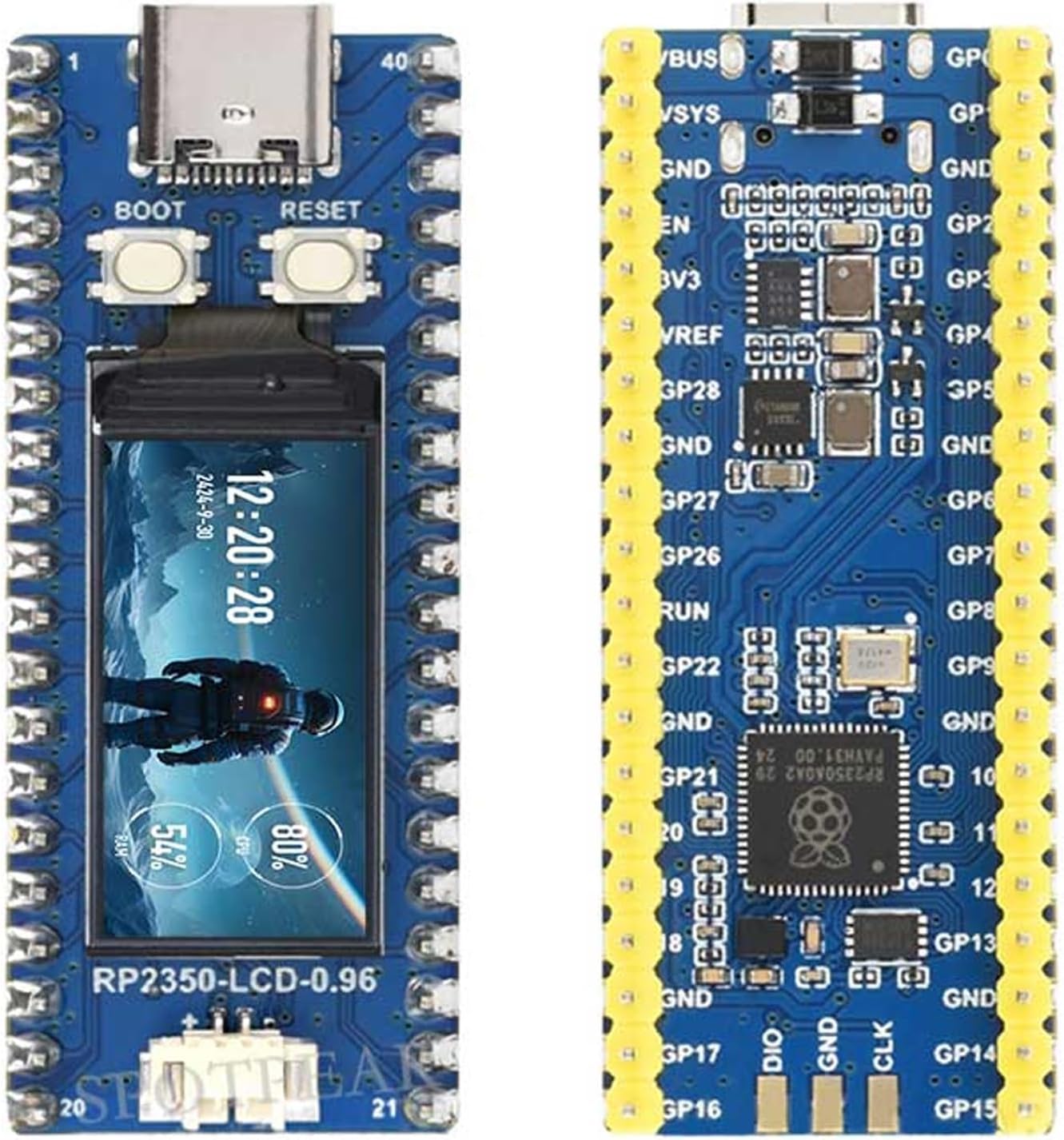

RP2350A fejlesztői panel, 0.96 LCD kijelzővel, 160x80px, Dual-core & Dual-architecture Microcontroller, 150MHz
RP2350-LCD-0.96
Cikkszám:
#9158
100% magyar cég!
100% magyar raktár!
(Bruttó) Ár:
10,990
Ft
Raktáron

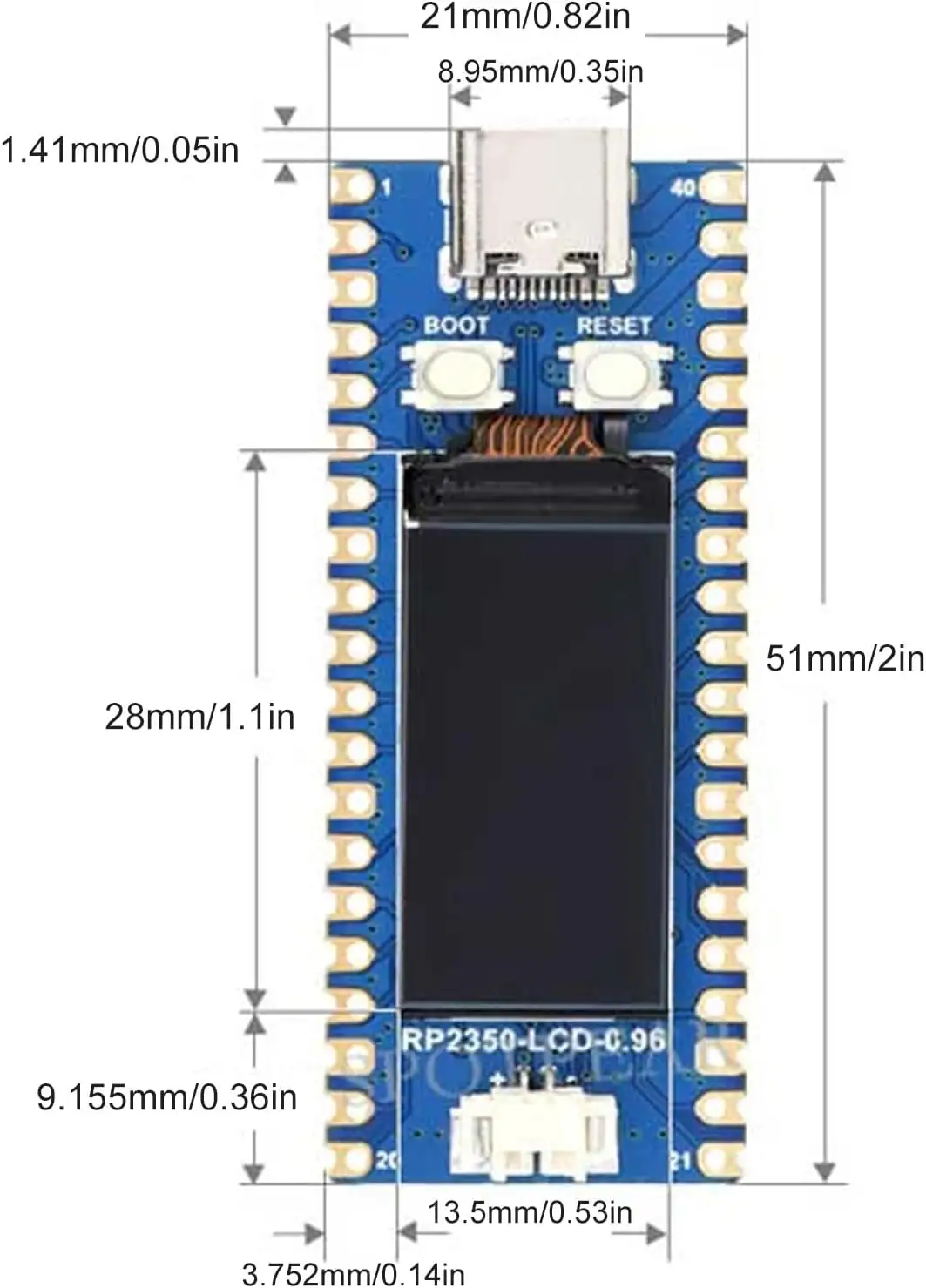

0.96"-os kijelzővel RP2350A mikrovezérlős modul.
Opcionálisan forrasztott tüskesorral is külön rendelhető, ezek a képeken csak illusztrációk.
-RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
-Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
-520KB of SRAM, and 4MB of on-board Flash memory
-USB-C connector, keeps it up to date, easier to use
-0.96inch 160×80 pixels 65K colorful IPS LCD display
-Lithium battery recharge/discharge header, sui for mobile devices
-Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip, maximum 2A load current
-ellated module ows soldering directly to carrier boards
-USB 1.1 with device and host support
-Low-power and dormant modes
-Drag-and- programming using mass storage over USB

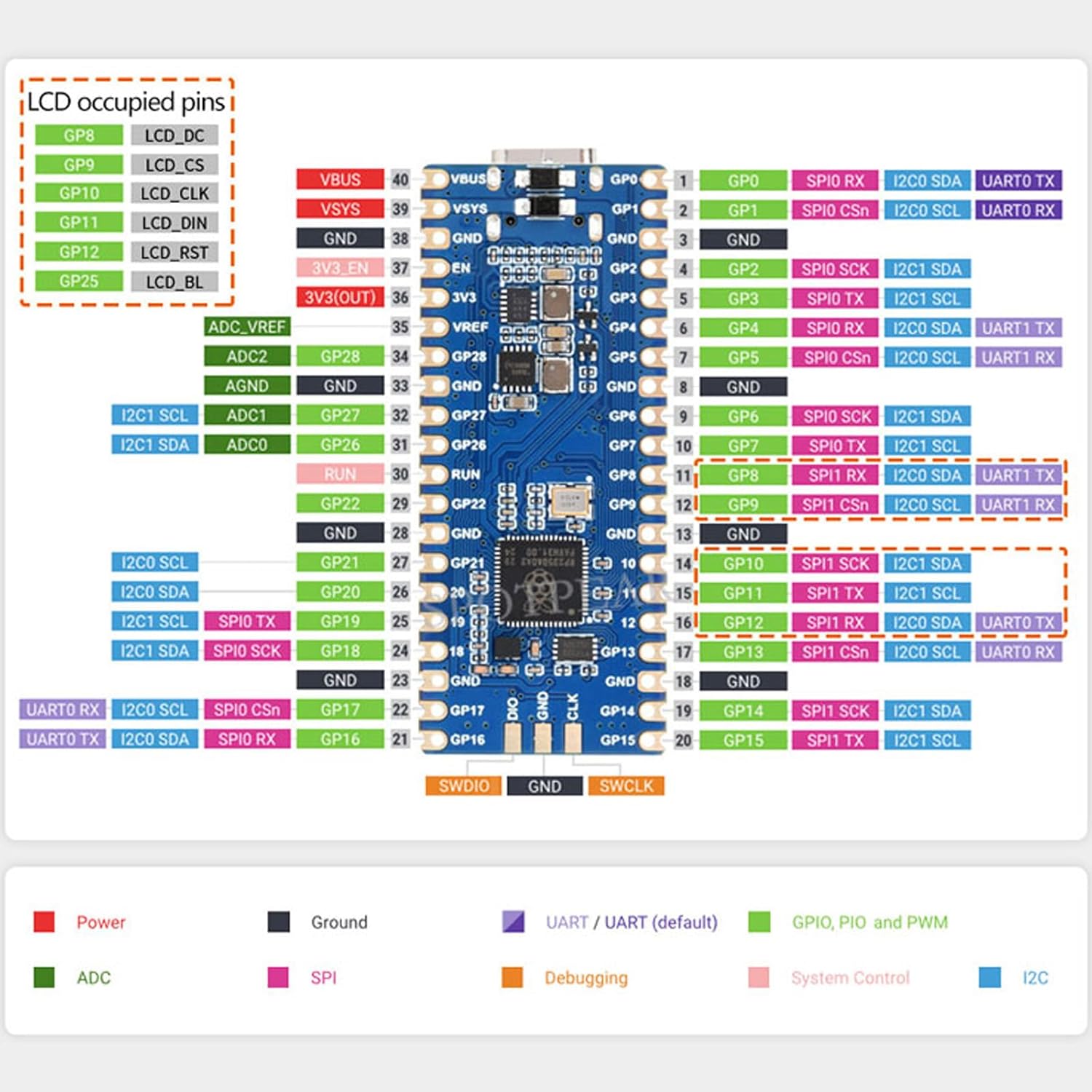

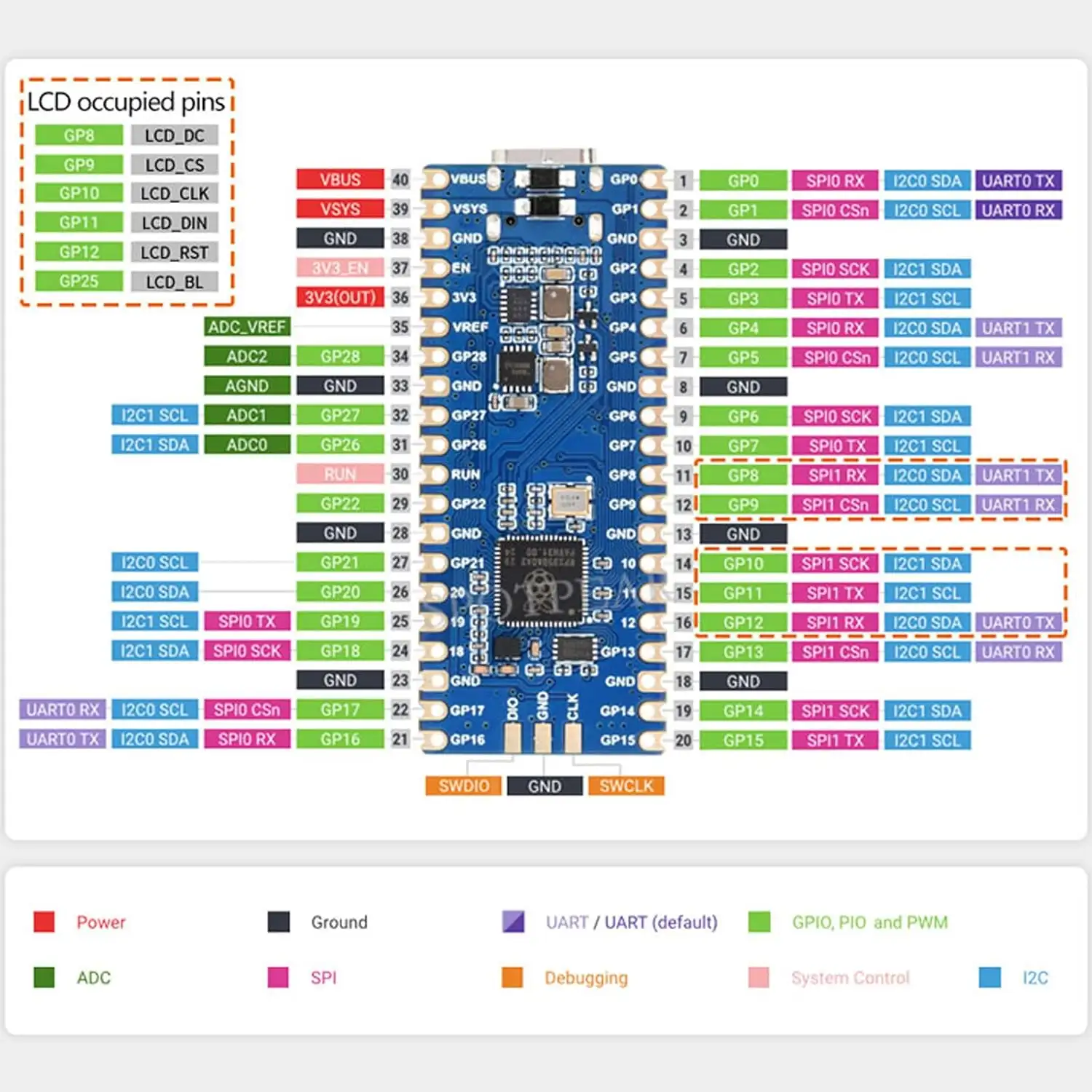

26 × multi-function GPIO pins
-2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
-Accurate clock and timer on-chip
-Temperature sensor
-Accelerated floating-point libraries on-chip
-12 × Programmable I/O (PIO) state machines for custom peripheral support
