ESP32 Kamera modullal
ESP32-CAM WiFi Development Board,Wifi Bluetooth Module with OV2640 Camera Module
Cikkszám:
#4729
100% magyar cég!
100% magyar raktár!
    4,990
Ft

(Bruttó) Ár:
3,990
Ft
| (Bruttó) Ár: |
4,990 Ft
|
|
3,990 Ft |
Raktáron

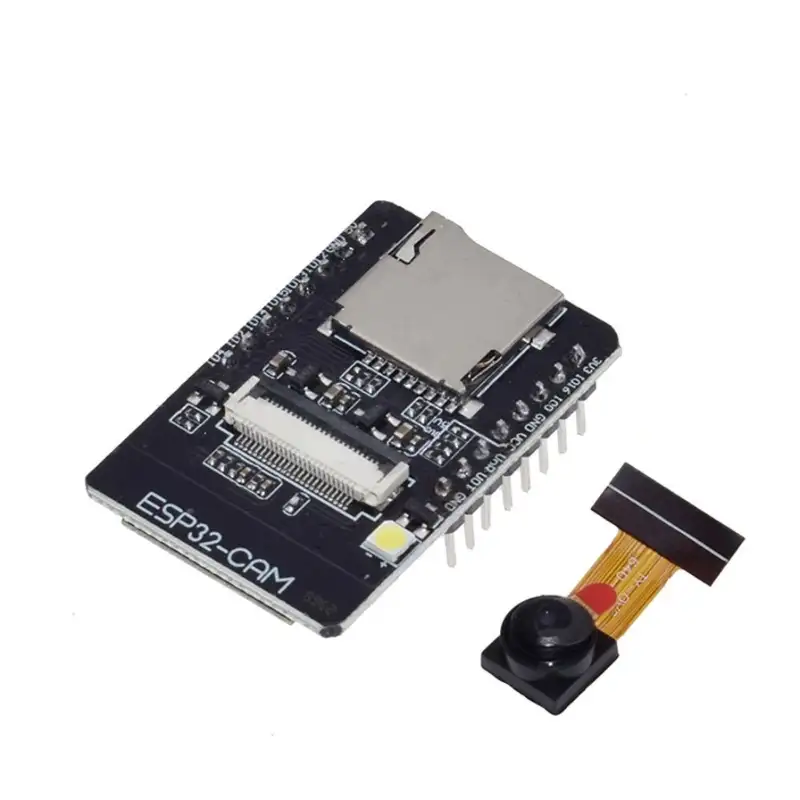

Kamera modulos ESP32 fejlesztőeszköz.

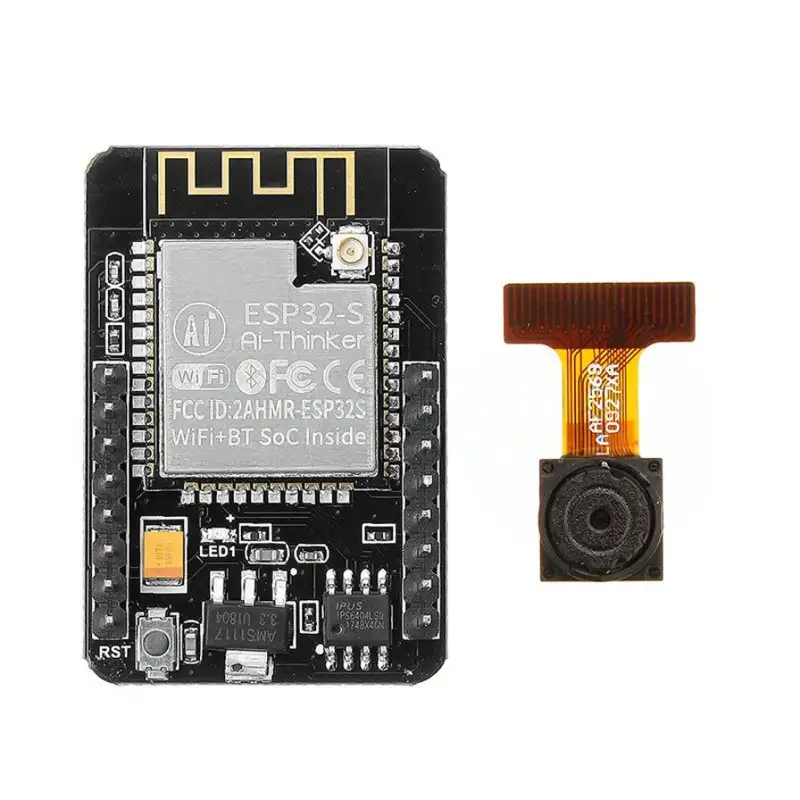

A panel alapból tartalmaz egy ESP32-S Wifi-s és Bluetooth képes vezérlőt, valamint egy 2megapixeles (30fps) képes kamerát is.
Közvetelnül online videostreamelésre, videórögzítésre is alkalmas. SD kártya (TF) foglalat a modulon.
5V logikai tápfeszültségre.
Külön rendelhető az illesztő pajzs USB-s programozáshoz is:
The ESP32-CAM has a very competitive small form factor camera module that can operate independently as a minimum system with a footprint of only 27*40.5*4.5mm and a deep sleep current of up to 6mA.
ESP-32CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications.
ESP-32CAM is packaged in DIP and can be directly plugged into the backplane for quick production. It provides customers with a highly reliable connection method and is convenient for use in various IoT
hardware terminals.
Product Features
Low-power dual-core 32-bit CPU for application processors
Main frequency up to 240MHz, computing power up to 600 DMIPS
Built-in 520 KB SRAM, external 4M PSRAM
Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
Support OV2640 and OV7670 cameras, built-in flash
Support image WiFi upload
Support TF card
Support STA/AP/STA+AP working mode
Support multiple sleep modes
Embedded Lwip and FreeRTOS
Support Smart Config/AirKiss one-click distribution network
Support secondary development
