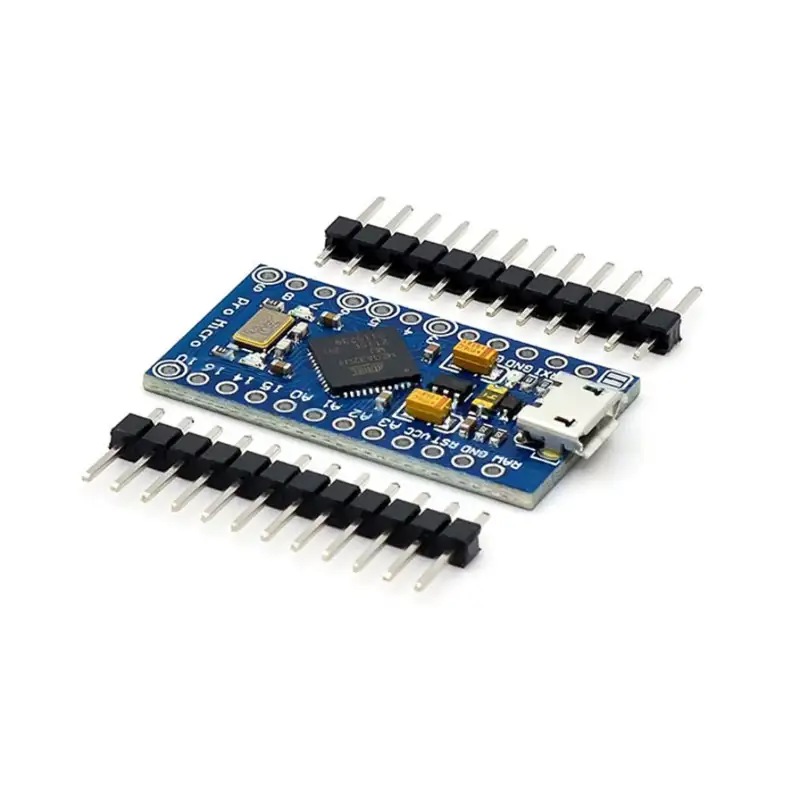

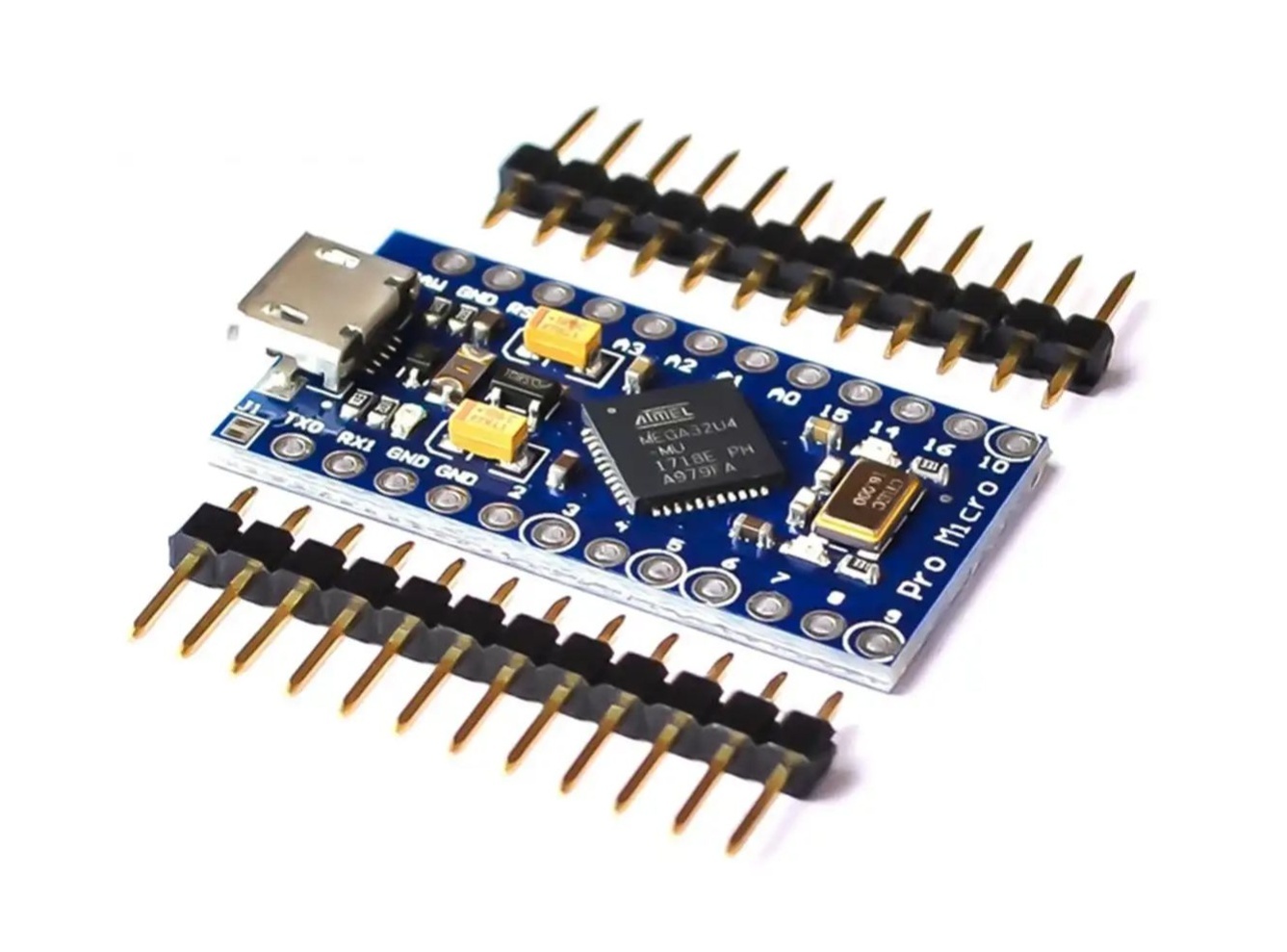

Arduino Leonardo Pro Micro
Micro USB, ATmega32U4 5V/16MHz module (Arduino Pro Mini)
Cikkszám: #4590
Cikkszám: #4590
    5,990 Ft     (Bruttó) Ár:  5,490 Ft
(Bruttó) Ár: 5,990 Ft
5,490 Ft
Raktáron Raktáron
db Kosárba tesz Kosárba tesz

ATmega32U4 5V/16MHz module, Micro USB csatlakozós változat, keskeny kivitel

Features:
ATMega 32U4 running at 5V/16MHz
On-Board micro-USB connector for programming
4 x 10-bit ADC pins
Supported under for IDE v1.0.1
12 x Digital I/Os (5 are PWM capable)
Rx and Tx Hardware Serial Connections



Features:
ATMEGA32U4 in 5 v / 16 MHZ
Under the support of the Arduino IDE V1.0.1
Four 10 bit ADC pin
12 digital I/O (PWM)
The board of directors on the micro USB interface programming
Rx and Tx hardware serial connection
Description:
This small board to do all in the neighbourhood of the Arduino skills: 4 channel 10 bit ADC, five PWM pin, 12 DIO and hardware serial connection Rx and Tx: are you familiar with.Run in 16 MHZ and 5 v, the committee will remind you of many other you like the Arduino compatible circuit board, but this little guy can go to any place.In the ship has a voltage regulator, so it can accept voltage up to 12 VDC.If you are the supply of unstable power supply board, must be connected to the "RAW" is not the VCC pin.This latest version correct silk, make the pin 14 is correct.We also added a PTC fuse and diode protection power supply circuit and correct RX and TX LED circuit

The Pro Micro is similar to the Pro Mini except with an ATmega32U4 on board. The USB transceiver inside the 32U4 allows us to add USB connectivity on-board and do away with bulky external USB interface.

This tiny little board does all of the neat-o Arduino tricks that you're familiar with: 4 channels of 10-bit ADC, 5 PWM pins, 12 DIOs as well as hardware serial connections Rx and Tx.

Running at 16MHz and 5V, this board will remind you a lot of your other favorite Arduino-compatible boards but this little guy can go just about anywhere.
There is a voltage regulator on board so it can accept voltage up to 12VDC. If you're supplying unregulated power to the board, be sure to connect to the "RAW" pin on not VCC.

Dimensions: 1.3x0.7"

    Features:

  • ATMega 32U4 running at 5V/16MHz
  • Supported under Arduino IDE v1.0.1 and up
  • On-Board micro-USB connector for programming
  • 4 x 10-bit ADC pins
  • 12 x Digital I/Os (5 are PWM capable)
  • Rx and Tx Hardware Serial Connections
Our Smallest Arduino-Compatible Board Yet!
