Kefenélkül motor szabályzó kisméretű brushless motorokhoz, kézi vezérléshez.

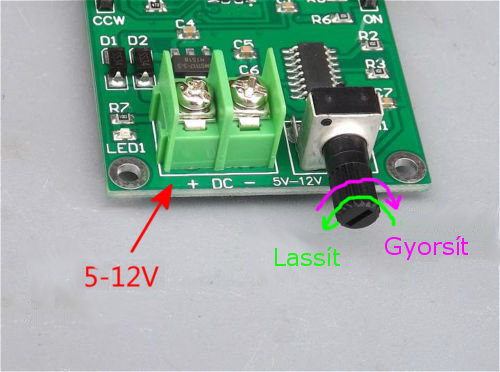

Potméteres vezérlés, 5-12V-os működéshez, 3 és 4 vezetékes bekötéshez is!

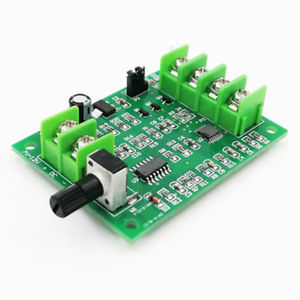

5V-12V DC Brushless Motor Driver modul. 3/4 wire

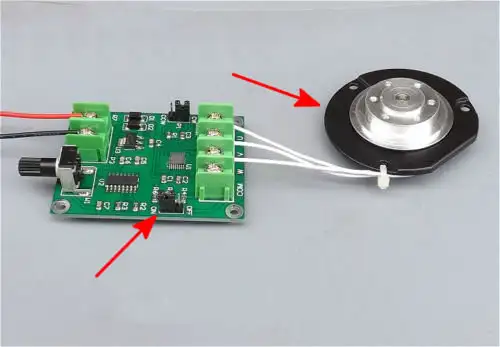

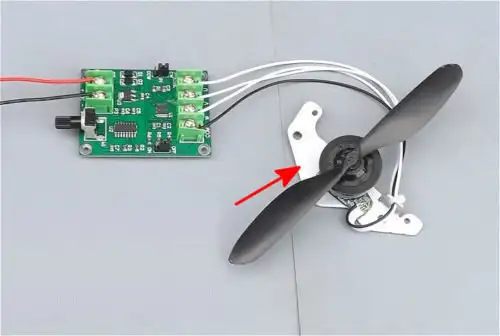

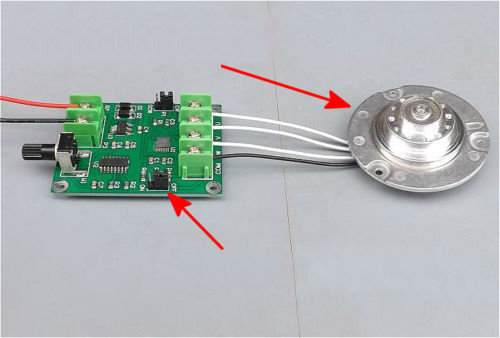

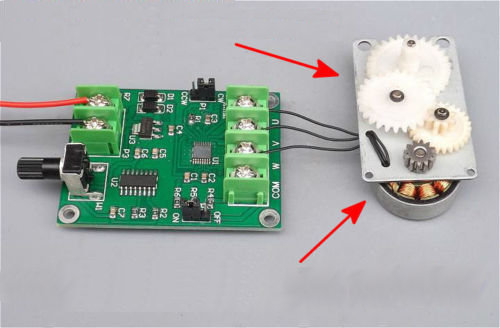

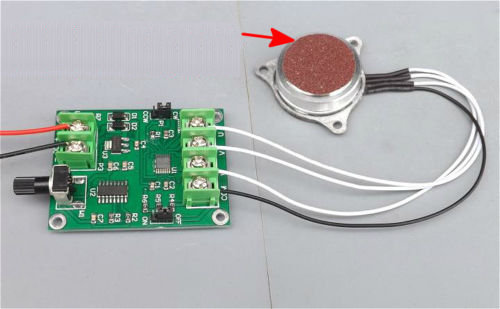

Használható kisebb hobbymotorokhoz, de kiváló HDD, CD vagy DVD típusú motorokhoz amik Hall szenzor nélküliek.

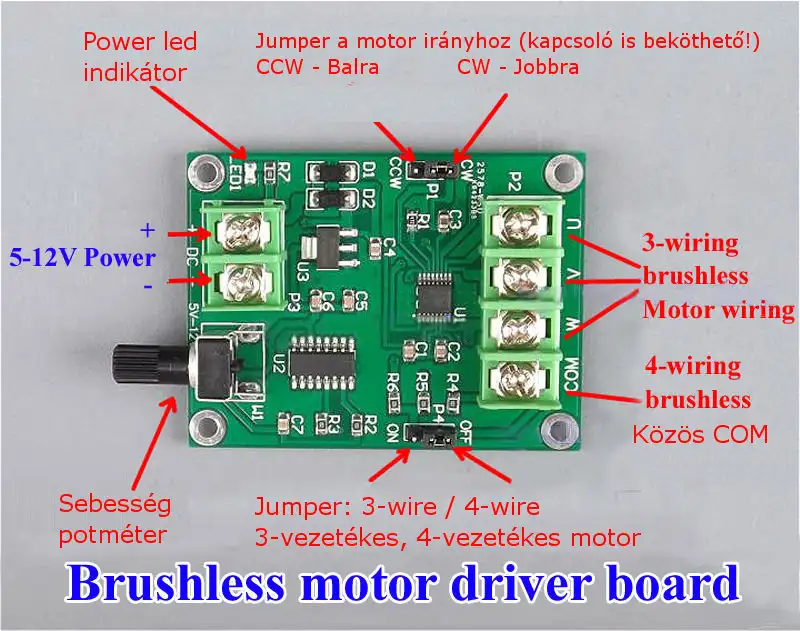

Jumperek beállításai:
CW/CCW jumper: forgás irány változtatása (ide irányváltó kapcsoló is beköthető a tüskesorra)
Továbbá a 3 fázis bármelyik 2 ér bekötésének megcserélésével a kefe nélküli motor forgásiránya ellentétes lesz.
ON/OFF jumper: az ON állapotában 3 vezetékes mód bekapcsolása
The driver board can drive hard brushless motor, brushless motor drive and other miniature 3-wire or 4-wire brushless motor without Hall.
Driver board reverse voltage protection, over current protection, simple wiring, use a very hassle free.
Hard disk motors voltage 5-12V can turn, the higher the voltage the faster the speed, the maximum can reach 10,000 rpm or so.
How to identify the 4-wire motor common port: with a multimeter resistance * 1 are the amount of gear the four terminals, one terminal and the other three terminals of the resistance value of the minimum and equal, then the terminal is the COM terminal, which is public terminals.
Specifikáció:
Drive voltage: DC 5-12V
Work current: ≤1.2A
Speed range: 0% - 100%
Phase inversion Control yes
Voltage polarity protection yes
Overcurrent yes
