Specifikáció:
ULN stepping motor driving board + 5V stepping motor
:Description::

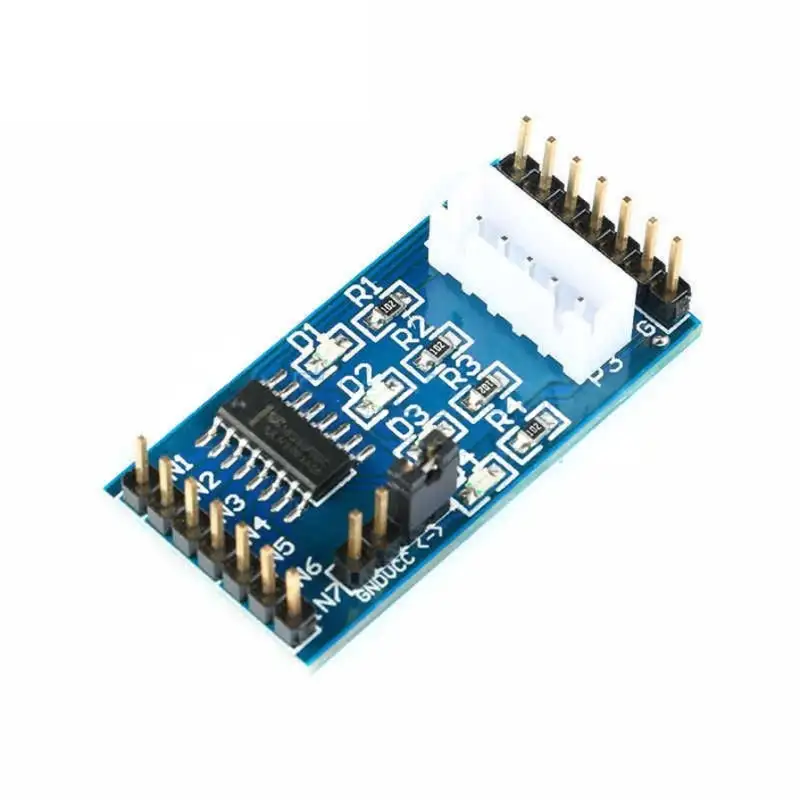

Standard double panel design,fine workmanship, board size:38mm X 30mm
Use ULN2003 drive chip,500mA
In stepping motor port,four channels highlight SMD green LED diode indicates working status
In DC motor port,one channel highlight SMD green LED diode indicates working status Power light:highlight red SMD LED diode
Equipped with stepping motor standard interface and DC motor standard interface,can directly call waiting when using
Choose through red short circuit hat,support different working voltage motors
Connect short circuit hat,choose 5V as the working voltage for steeping motor/DC motor
Take off short circuit hat,steeping motor/DC motor can choose external voltage for power supply through pins
Bekötés:
The wiring method for stepping motor:
Left 1 N 1 ~ 1 N 4 connect to the four corresponding IO wires of MCU
The right black pins are defined from top to VCC,A,B,C,D ( connect to the concentric line,phase A,B,C,D of stepping motors)
The wiring method for DC motor:
Left 1 N1 ~ 1 N 4 connect correspondingly to the four IO wires of MCU
The right black pins are defined as:below is VCC
Power supply method:
Connect short circuit hat,choose 5V as the working voltage for stepping motor/DC motor
Take off short circuit hat,stepping motor/DC motor can choose external voltage for power supply via pins
Speed down stepping motor
Diameter:28mm
Voltage:5V
Stepping angle:5.625 X 1/64
Speed reduction ratio:1/64
Five lines four phases,can be driven by common uln2003,can be used as connecting two phase;can be used with PCB board,direct plug and socket,easy to use on PCB board
Color: blue, show as pictures
Szettben:
1 x ULN léptető motor meghajtó áramkör
1 x 5V léptetőmotor
