Lágy indító funkcióval.
PWM sebesség szabályzó.
Alkalmas DC-motorokhoz, HHO hidrogén generátorokhoz, egyéb PWM-mel hajtható fogyasztókhoz.

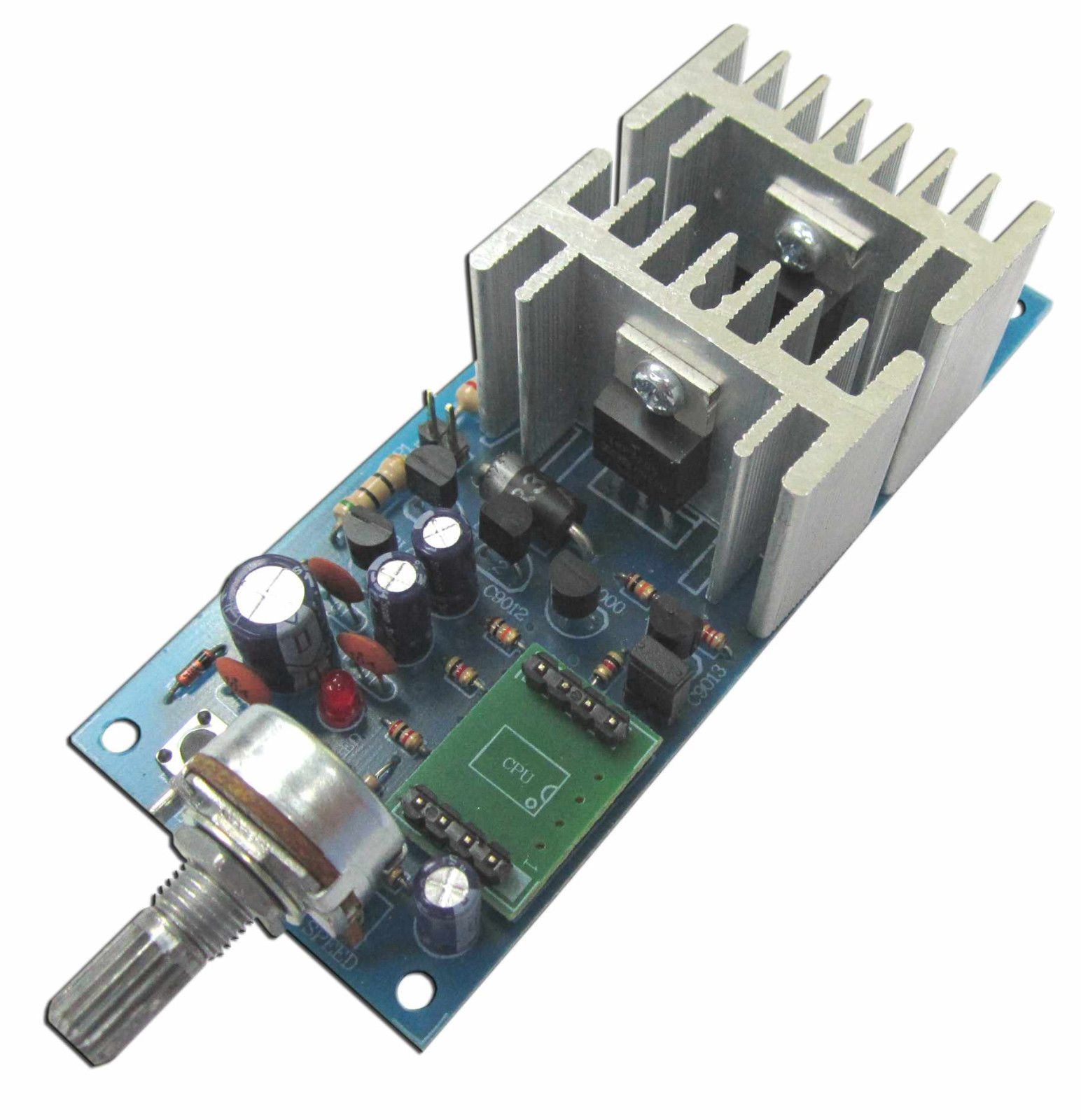

Motor speed : Using IC micro controller PWM (Pulse With Modulation) for motor speed control.
- Built-in soft start for protecting electric shock when supply the voltage.
- There is the limit voltage circuit at the gate of mosfet for protecting the over voltage and noisy signal.
- Using the mosfet driver circuit to greatly increase working efficiency of the circuit in ranges of frequency as follows
@ 100Hz, 200Hz, 400Hz, 800Hz, 1.6kHz, 3.2kHz, 6.4kHz and 12.8kHz
- Power supply : 8-30VDC. (select by jumper and motor).
- Load voltage : 8-30VDC./ 30A. max.
- PWM duty cycle : adjustable from 0% to 100%.
- PCB dimensions : 3.83 x 1.57 in.

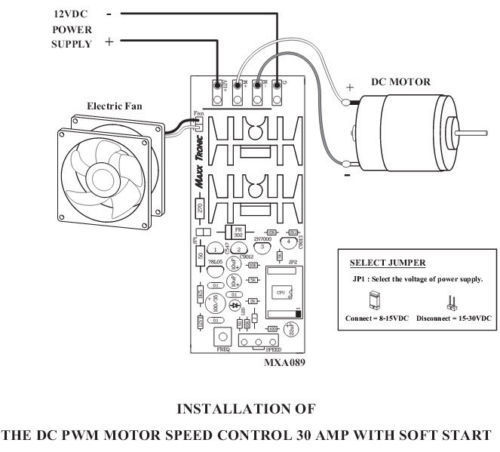

- The schematic and diagram how to connect.
